CH-4 Diesel Engine Oil
CH-4 diesel engine oil for high-speed four-stroke diesel applications. The supplied product information describes high-temperature cleanliness, wear protection and oxidation resistance.
Choose your specification.
Select a grade or type, pack size and quantity. We will use these details to prepare your quotation.
Packaging image not available for this option. The product can still be included in your inquiry.

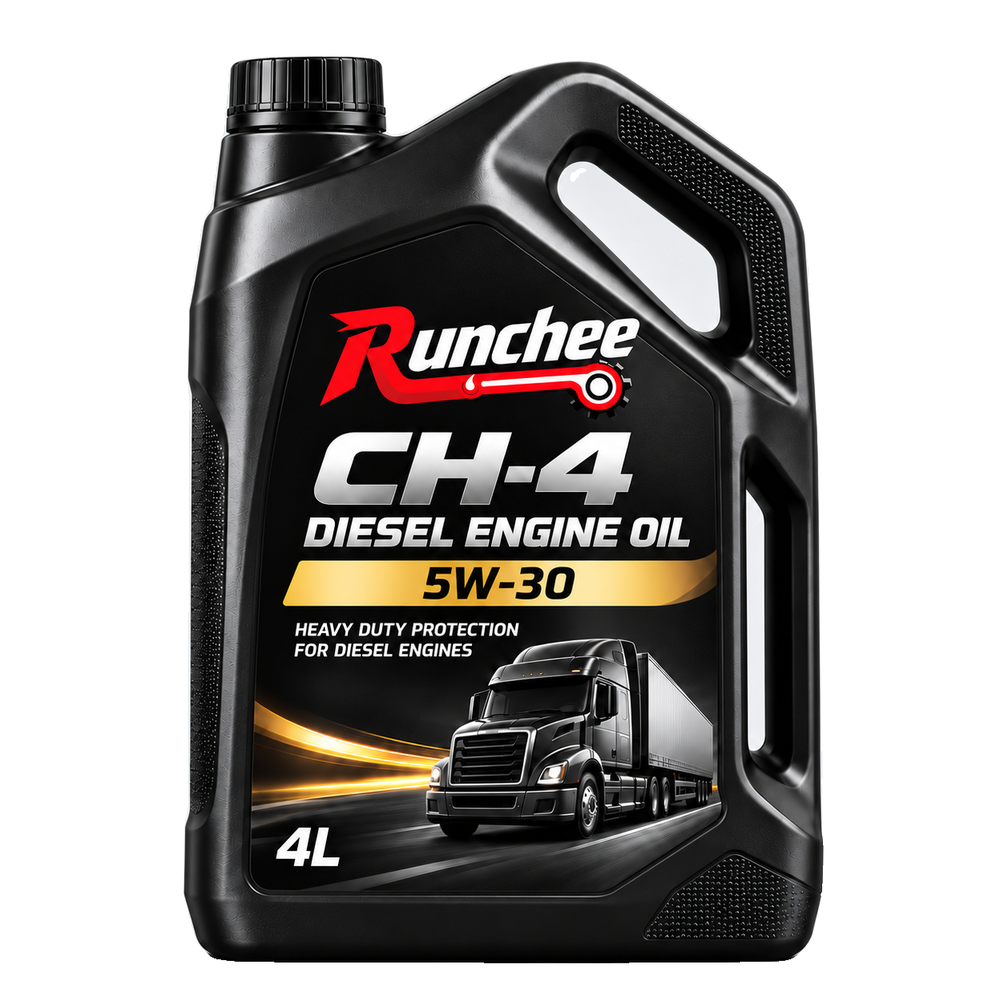

RunChee · CH-4 Diesel Engine Oil · 5W-30 · 4 L
Select grade & packaging.
Series: Engine Oil Series
5W-30 · 4 L
Your selection is carried into the inquiry form. Carton quantity refers to the number of individual containers in one carton.
Available grades & packaging
| Grade / designation | Packaging options | Choose |
|---|---|---|
| 5W-30 | 4 L · 6 containers/carton; 18 L · individual container | |
| 10W-30 | 4 L · 6 containers/carton; 18 L · individual container | |
| 15W-40 | 4 L · 6 containers/carton; 18 L · individual container | |
| 20W-50 | 4 L · 6 containers/carton; 18 L · individual container |
Where to use this product.
Applications
Turbocharged diesel engines requiring CH-4 oil, including suitable heavy trucks, construction machinery and generator sets.
- 01
Detergent and dispersant performance helps control piston deposits.
- 02
Wear and corrosion control support protection of bearings and cylinder liners.
- 03
Oxidation resistance and viscosity-temperature behavior address hot and cold operation.
Compare the grades before ordering.
Check the test conditions and limits alongside the grade you are ordering.
| Property / test condition | 5W-30 | 10W-30 | 15W-40 | 20W-50 | Test method |
|---|---|---|---|---|---|
| Kinematic viscosity (100°C), mm²/s | 9.3~<12.5 | 9.3~<12.5 | 12.5~<16.3 | 16.3~<21.9 | GB/T265 |
| Flash point (Open cup), °C (min.) | 200 | 205 | 215 | 215 | GB/T3536 |
| Pour point, °C (max.) | -35 | -30 | -25 | -20 | GB/T3535 |
| Mechanical impurities, %** (max.) | 0.01 | 0.01 | 0.01 | 0.01 | GB/T511 |
| Water, % (max.) | Trace | Trace | Trace | Trace | GB/T260 |
| Low-temperature dynamic viscosity, mPa・s * (max.) | 6600(-30°C) | 7000(-25°C) | 7000(-20°C) | 9500(-15°C) | GB/T6538 |
| Low-temperature pumping viscosity, mPa・s * At no yield stress (max.) | 60000(-35°C) | 60000(-30°C) | 60000(-25°C) | 60000(-20°C) | SH/T0562 |
| Evaporation loss (250°C, 1h), % (max.) | 20 | 20 | 18 | 18 | SH/T0059 |
| Foaming characteristics (Tendency / Stability), ml/ml · GB/T12579 | |||||
| 24°C (max.) | 10/0 | 10/0 | 10/0 | 10/0 | GB/T12579 |
| 93.5°C (max.) | 20/0 | 20/0 | 20/0 | 20/0 | GB/T12579 |
| After 24°C (max.) | 10/0 | 10/0 | 10/0 | 10/0 | GB/T12579 |
Swipe or scroll inside the table to compare columns. Limits are reproduced from the supplied product specification. “Report” indicates a result to be reported; “—” indicates no value stated. Request the current TDS for the exact grade.
Product documents for your selected grade.
The performance comparison above is available online. Request a current TDS or SDS for this model and grade; document availability and revision are confirmed with your request.
Before you request a quotation.
Which grade or type should I select?
The listed grades or types are 5W-30, 10W-30, 15W-40, 20W-50. Match the selection to your equipment manual or formulation requirement. If you are unsure, send us the equipment model and the specification you are working to.
What packaging can I request?
Listed packaging: 4 L · 6 containers/carton; 18 L · individual container. Confirm availability, order quantity and shipping details in the written quotation.
Does the picture cover every specification?
Packaging photos are references for the grade and pack shown in the caption. A listed specification can still be requested when there is no matching photo.
Can I request the TDS, SDS or approval information?
Ask for the current TDS for the exact grade and the relevant SDS. Tell us the destination country and any approval requirement so document availability can be confirmed before the order.
What information do you need for a quotation?
Include CH-4 Diesel Engine Oil, the grade or type, pack size, quantity and delivery destination. Add your equipment requirement or document request where relevant. We will confirm the product and supply details in a written quotation.
Request CH-4 Diesel Engine Oil.
Send the grade or type, pack size, quantity and delivery destination. We will confirm the product and supply details in a written quotation.
