MTF Manual Transmission Oil
MTF manual transmission oil with viscosity, low-temperature and corrosion data. One grade designation differs between the product list and technical table and is marked for confirmation.
Choose your specification.
Select a grade or type, pack size and quantity. We will use these details to prepare your quotation.
Packaging image not available for this option. The product can still be included in your inquiry.

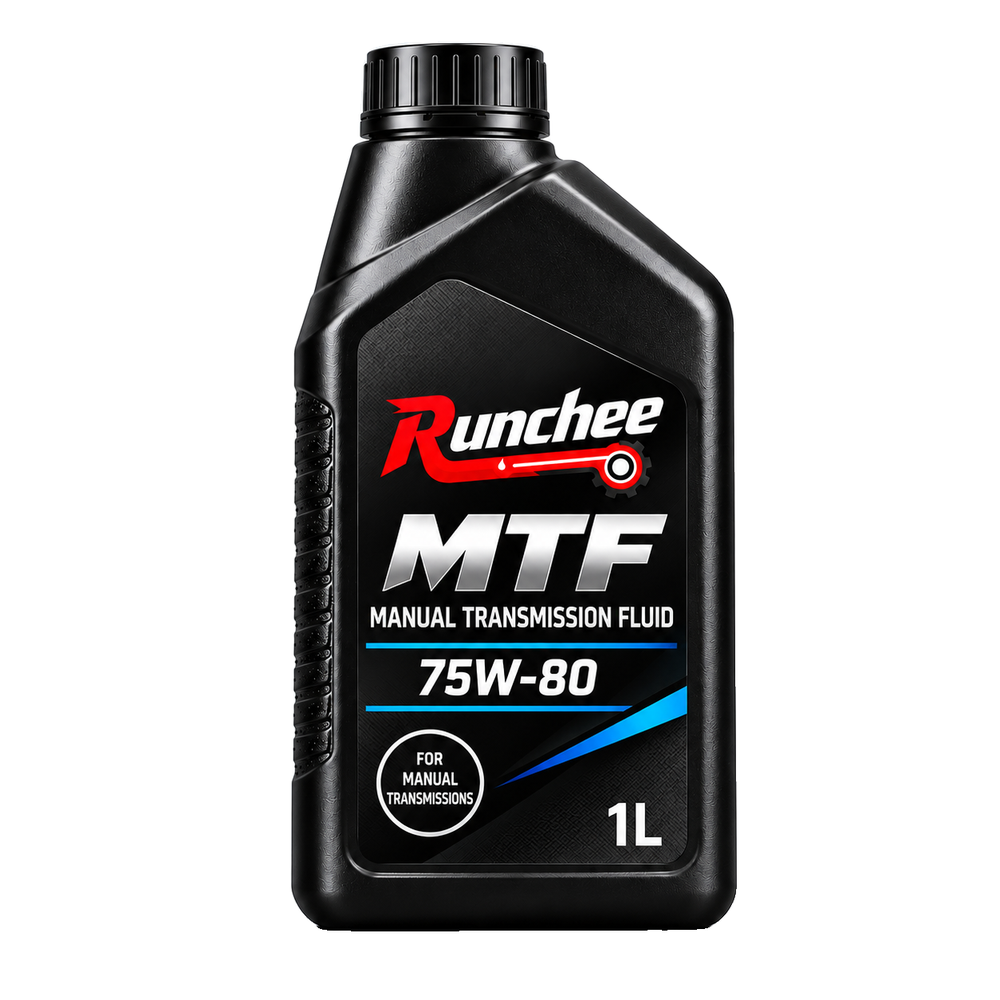

RunChee · MTF Manual Transmission Fluid · 75W-80 · 1 L
Select grade & packaging.
Series: Gear Oil Series
75W-80 · 1 L
Your selection is carried into the inquiry form. Carton quantity refers to the number of individual containers in one carton.
Available grades & packaging
| Grade / designation | Packaging options | Choose |
|---|---|---|

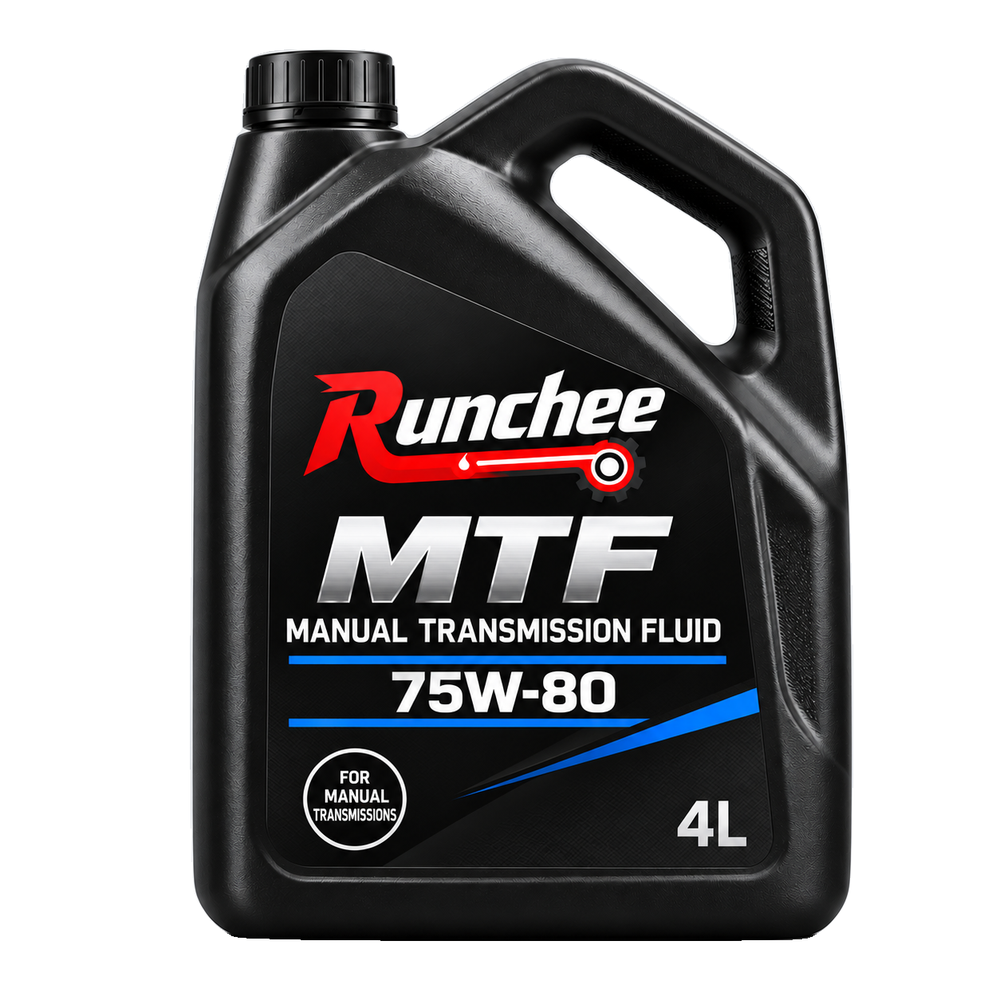

| 75W-80 | 1 L · 12 containers/carton; 4 L · 6 containers/carton | |

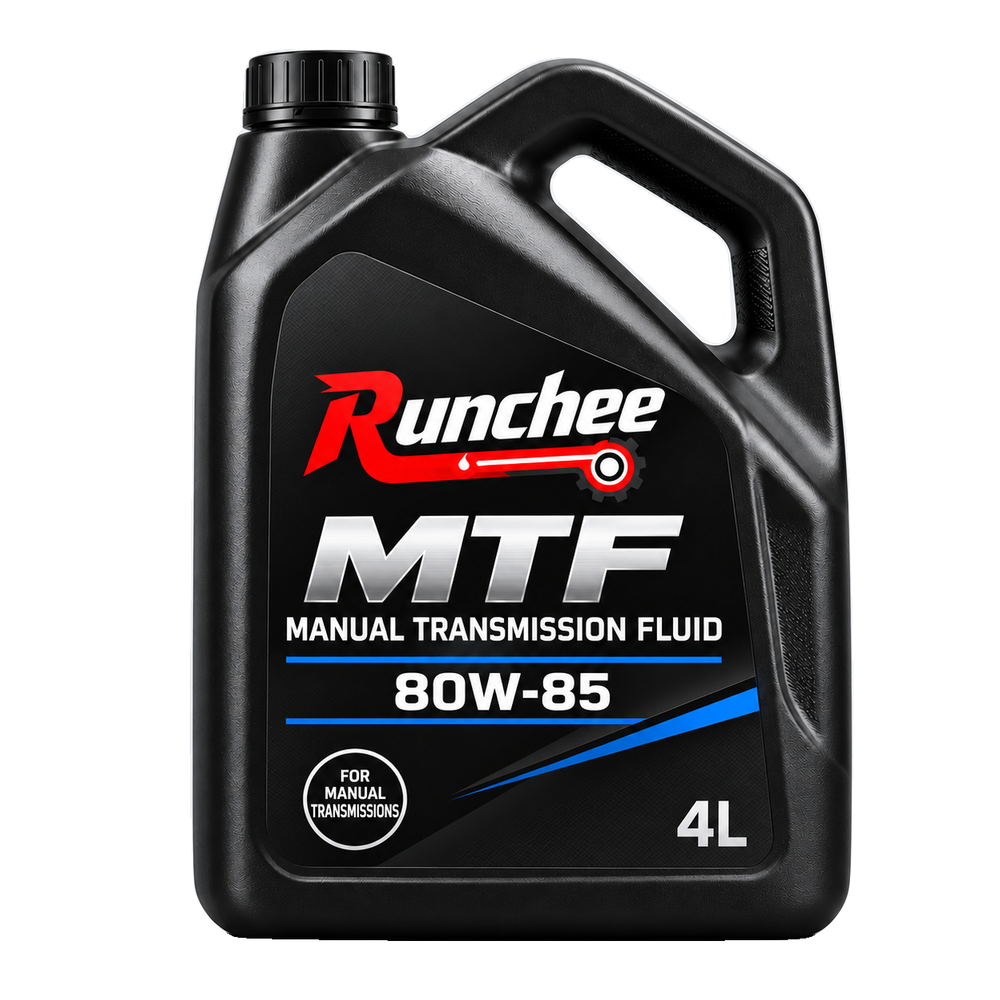

| 80W-85 | 1 L · 12 containers/carton; 4 L · 6 containers/carton | |

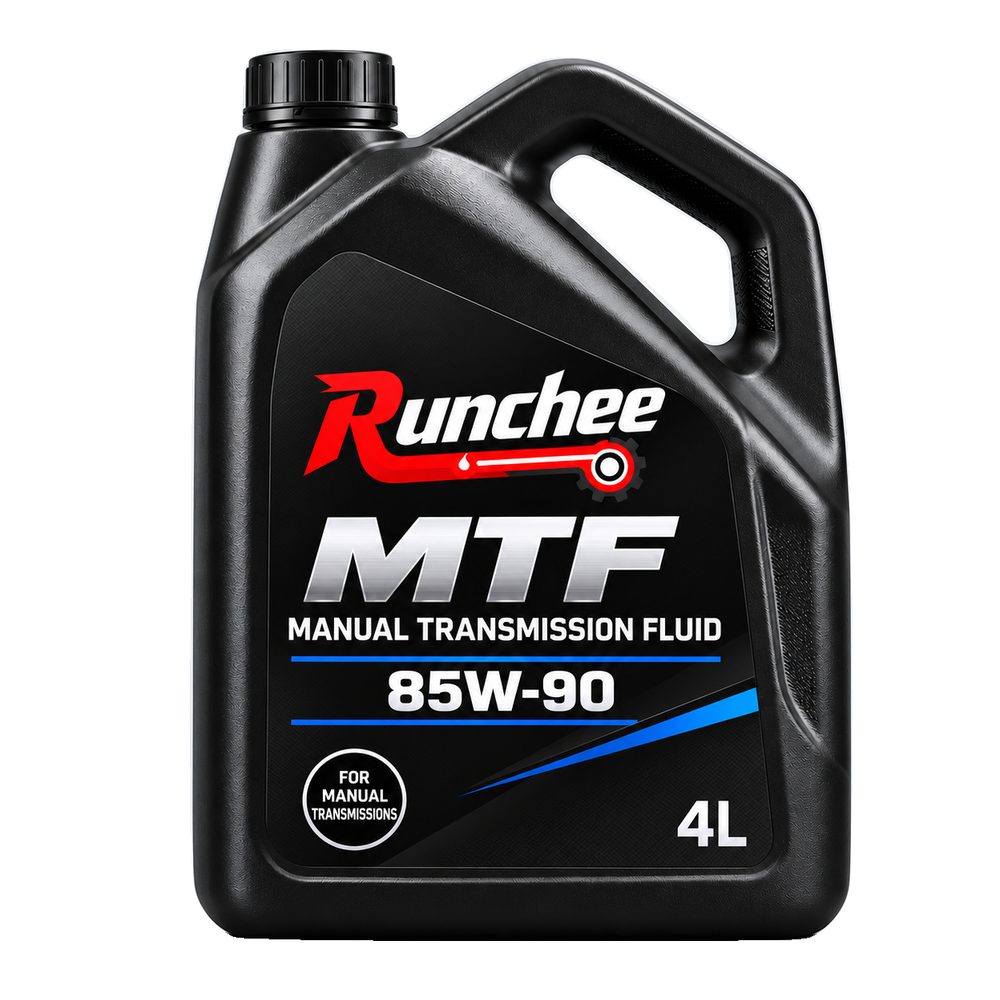

| 85W-90 | 1 L · 12 containers/carton; 4 L · 6 containers/carton | |
| 80W-90Grade to confirm | 1 L · 12 containers/carton; 4 L · 6 containers/carton |
Where to use this product.
Applications
Manual transmissions requiring the stated fluid type. Provide the gearbox specification and confirm whether the requested final grade is 80W-90 or the product-list 85W-90.
- 01
The technical columns compare 75W-80, 80W-85 and 80W-90.
- 02
Pour point and flash point requirements are listed for each technical column.
- 03
Foaming, copper corrosion and four-ball test reporting are included.
Compare the grades before ordering.
Check the test conditions and limits alongside the grade you are ordering.
| Property / test condition | 75W-80 | 80W-85 | 80W-90 | Test method |
|---|---|---|---|---|
| Kinematic viscosity (100°C) mm²/s | 7.0–11.0 | 11.0–13.5 | 13.5–24.0 | GB/T265 |
| Pour point, °C (max.) | ≤ -42 | ≤ -28 | ≤ -28 | GB/T3535 |
| Flash point (Open cup), °C (min.) | ≥ 150 | ≥ 150 | ≥ 150 | GB/T3536 |
| Mechanical impurities, % (max.) | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | GB/T511 |
| Water, % (max.) | ≤ Trace | ≤ Trace | ≤ Trace | GB/T260 |
| Foaming characteristics (Tendency / Stability) ml/ml · GB/T12579 | ||||
| Initial 24°C (max.) | ≤ 20/0 | ≤ 20/0 | ≤ 20/0 | GB/T12579 |
| 93.5°C (max.) | ≤ 50/0 | ≤ 50/0 | ≤ 50/0 | GB/T12579 |
| After 24°C (max.) | ≤ 20/0 | ≤ 20/0 | ≤ 20/0 | GB/T12579 |
| Corrosion test (Copper strip 121°C×3h), Class (max.) | ≤ 2a | ≤ 2a | ≤ 2a | GB/T5096 |
| Maximum non-seizure load, P<sub>B</sub>N** | Report | Report | Report | GB/T3142 |
| Wear scar diameter **(1450r/min,294N,30min, Ambient temperature), mm | Report | Report | Report | SH/T0189 |
Swipe or scroll inside the table to compare columns. Limits are reproduced from the supplied product specification. “Report” indicates a result to be reported; “—” indicates no value stated. Request the current TDS for the exact grade.
Product documents for your selected grade.
The performance comparison above is available online. Request a current TDS or SDS for this model and grade; document availability and revision are confirmed with your request.
Before you request a quotation.
Which grade or type should I select?
The listed grades or types are 75W-80, 80W-85, 85W-90, 80W-90. Match the selection to your equipment manual or formulation requirement. If you are unsure, send us the equipment model and the specification you are working to.
What packaging can I request?
Listed packaging: 1 L · 12 containers/carton; 4 L · 6 containers/carton. Confirm availability, order quantity and shipping details in the written quotation.
Does the picture cover every specification?
Packaging photos are references for the grade and pack shown in the caption. A listed specification can still be requested when there is no matching photo.
Can I request the TDS, SDS or approval information?
Ask for the current TDS for the exact grade and the relevant SDS. Tell us the destination country and any approval requirement so document availability can be confirmed before the order.
What information do you need for a quotation?
Include MTF Manual Transmission Oil, the grade or type, pack size, quantity and delivery destination. Add your equipment requirement or document request where relevant. We will confirm the product and supply details in a written quotation.
Request MTF Manual Transmission Oil.
Send the grade or type, pack size, quantity and delivery destination. We will confirm the product and supply details in a written quotation.
