L-HG Hydraulic and Slideway Oil
L-HG hydraulic and slideway oil in grades 32 and 68. The technical table includes stick-slip behavior as well as hydraulic-fluid properties.
Choose your specification.
Select a grade or type, pack size and quantity. We will use these details to prepare your quotation.
Packaging image not available for this option. The product can still be included in your inquiry.

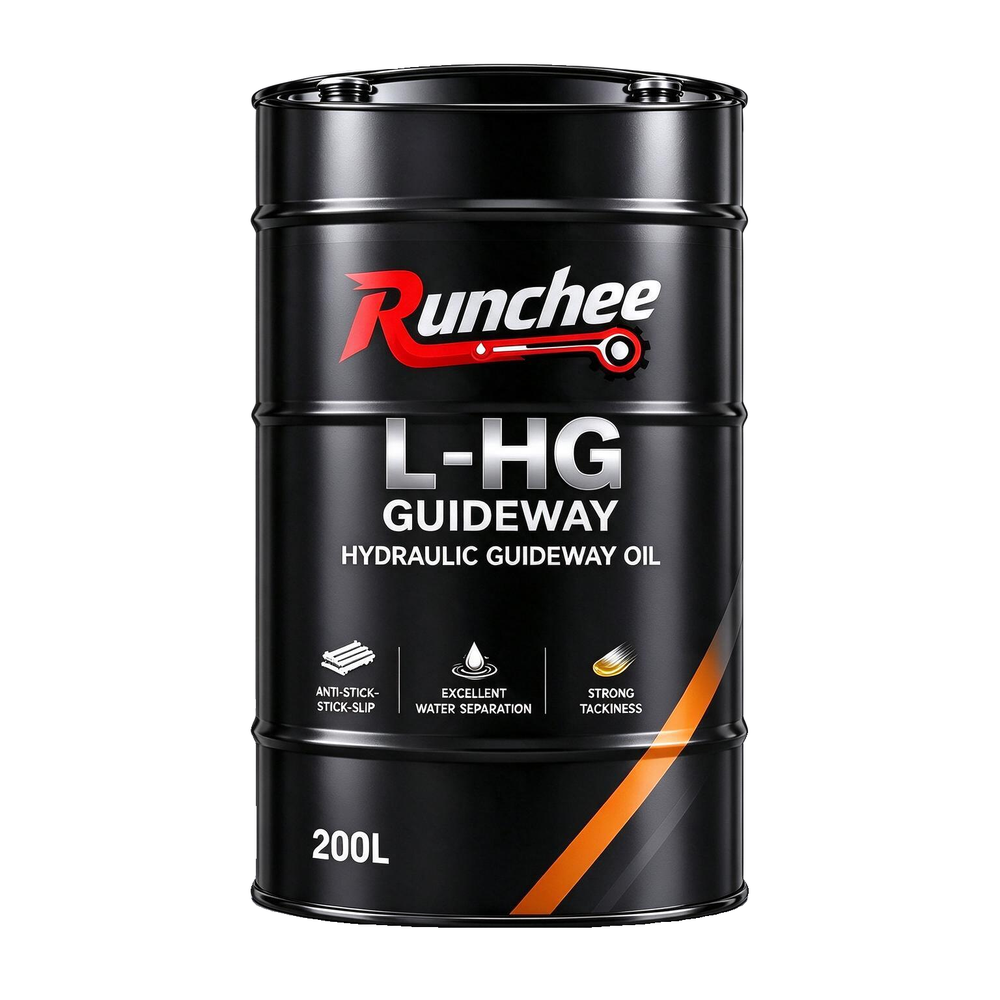

RunChee · L-HG Hydraulic Guideway Oil · 32 · 200 L
Select grade & packaging.
Series: Hydraulic & Transmission Oil Series
32 · 200 L
Your selection is carried into the inquiry form. Tell us the delivery destination and any document requirements when you inquire.
Available grades & packaging
| Grade / designation | Packaging options | Choose |
|---|---|---|
| 32 | 200 L · individual container | |
| 68 | 200 L · individual container |
Where to use this product.
Applications
Machine-tool hydraulic systems and guideways requiring L-HG oil. Confirm that the machine permits a shared hydraulic and slideway lubricant.
- 01
Two viscosity ranges at 40°C distinguish the listed grades.
- 02
The stick-slip test covers the difference between dynamic and static friction.
- 03
Rust prevention, copper corrosion, foaming and oxidation reporting are included.
Compare the grades before ordering.
Check the test conditions and limits alongside the grade you are ordering.
| Property / test condition | 32 | 68 | Test method |
|---|---|---|---|
| Kinematic viscosity (40°C), mm²/s | 28.8~<35.2 | 61.2~<74.8 | GB/T265 |
| Viscosity index * (min.) | ≥ 90 | 90 | GB/T1995 |
| Flash point(Open cup), °C (min.) | ≥ 175 | 195 | GB/T3536 |
| Pour point, °C (max.) | ≤ -6 | -6 | GB/T3535 |
| Foaming characteristics (Tendency / Stability), ml/ml · GB/T12579 | |||
| 24°C (max.) | ≤ 150/0 | 150/0 | GB/T12579 |
| 93.5°C (max.) | ≤ 75/0 | 75/0 | GB/T12579 |
| After 24°C (max.) | ≤ 150/0 | 150/0 | GB/T12579 |
| Copper strip corrosion(100°C, 3h), Class (max.) | ≤ 1 | 1 | GB/T5096 |
| Rust prevention test (Distilled water) | No rust | No rust | GB/T11143 |
| Oxidation stability(Rotating pressure vessel, 150°C), min | Report | Report | SH/T0193 |
| Stick-slip behavior(Difference between dynamic and static friction coefficients) (max.) | ≤ 0.08 | 0.08 | SH/T0361 Appendix A |
Swipe or scroll inside the table to compare columns. Limits are reproduced from the supplied product specification. “Report” indicates a result to be reported; “—” indicates no value stated. Request the current TDS for the exact grade.
Product documents for your selected grade.
The performance comparison above is available online. Request a current TDS or SDS for this model and grade; document availability and revision are confirmed with your request.
Before you request a quotation.
Which grade or type should I select?
The listed grades or types are 32, 68. Match the selection to your equipment manual or formulation requirement. If you are unsure, send us the equipment model and the specification you are working to.
What packaging can I request?
Listed packaging: 200 L · individual container. Confirm availability, order quantity and shipping details in the written quotation.
Does the picture cover every specification?
Packaging photos are references for the grade and pack shown in the caption. A listed specification can still be requested when there is no matching photo.
Can I request the TDS, SDS or approval information?
Ask for the current TDS for the exact grade and the relevant SDS. Tell us the destination country and any approval requirement so document availability can be confirmed before the order.
What information do you need for a quotation?
Include L-HG Hydraulic and Slideway Oil, the grade or type, pack size, quantity and delivery destination. Add your equipment requirement or document request where relevant. We will confirm the product and supply details in a written quotation.
Request L-HG Hydraulic and Slideway Oil.
Send the grade or type, pack size, quantity and delivery destination. We will confirm the product and supply details in a written quotation.
